Pallet dimensions actually vary by industry, region, and even individual company practice. A 48-inch by 40-inch pallet may be the North American benchmark, but chemical drums, telecom cabinets, and dairy crates all call for different footprints entirely.
This guide breaks down standard pallet dimensions, where each size comes from, and how to pick the right one for your product and shipping lane.
TL;DR
- The 48"x40" GMA pallet dominates US pallet usage, appearing in 72% of surveyed shippers' operations
- Alternate square sizes (42"x42", 48"x48", 40"x40", 36"x36") serve chemical, telecom, dairy, and beverage industries
- Pallet height is a separate spec from footprint, and construction type changes both weight and capacity
- International shipments need ISPM-15 heat treatment and often a different dimensional standard (Euro pallets)
- Match size to your product profile, customer requirements, and equipment compatibility
What "Standard Pallet Size" Actually Means
The GMA pallet — 48 inches by 40 inches — takes its name from the Grocery Manufacturers Association, now the Consumer Brands Association. It's the closest thing the US has to a universal benchmark.
But "standard" is a misnomer. According to Modern Materials Handling's 2025 Pallet Report, companies used more than one footprint last year:
- 48×40 — used by 72% of surveyed companies
- 48×48 — used by 34%
- 42×42 — used by 15%
(MMH Pallet Report 2025). Many businesses run multiple sizes depending on what's on the pallet.
A separate production-share figure tells a different story: 48×40 accounts for roughly 29% of new pallet production nationally — output, not usage.
One clarification that trips up a lot of shippers: "pallet dimensions" usually means the length × width footprint only. Height is a separate spec, and freight carriers bill using both. Mixing them up leads to bad freight quotes and surprises at the dock.
Why Pallets Are Sized the Way They Are
Pallet dimensions aren't arbitrary. ISO 6780:2003 governs "principal dimensions and tolerances" for flat pallets used in intercontinental handling, specifying openings, clearances, and chamfers needed for consistent equipment access (ISO 6780:2003).
In plain terms: pallet footprints need to coordinate with door openings, trailer widths, and handling equipment across the supply chain. That coordination is why certain sizes became conventions in specific industries rather than random preferences.

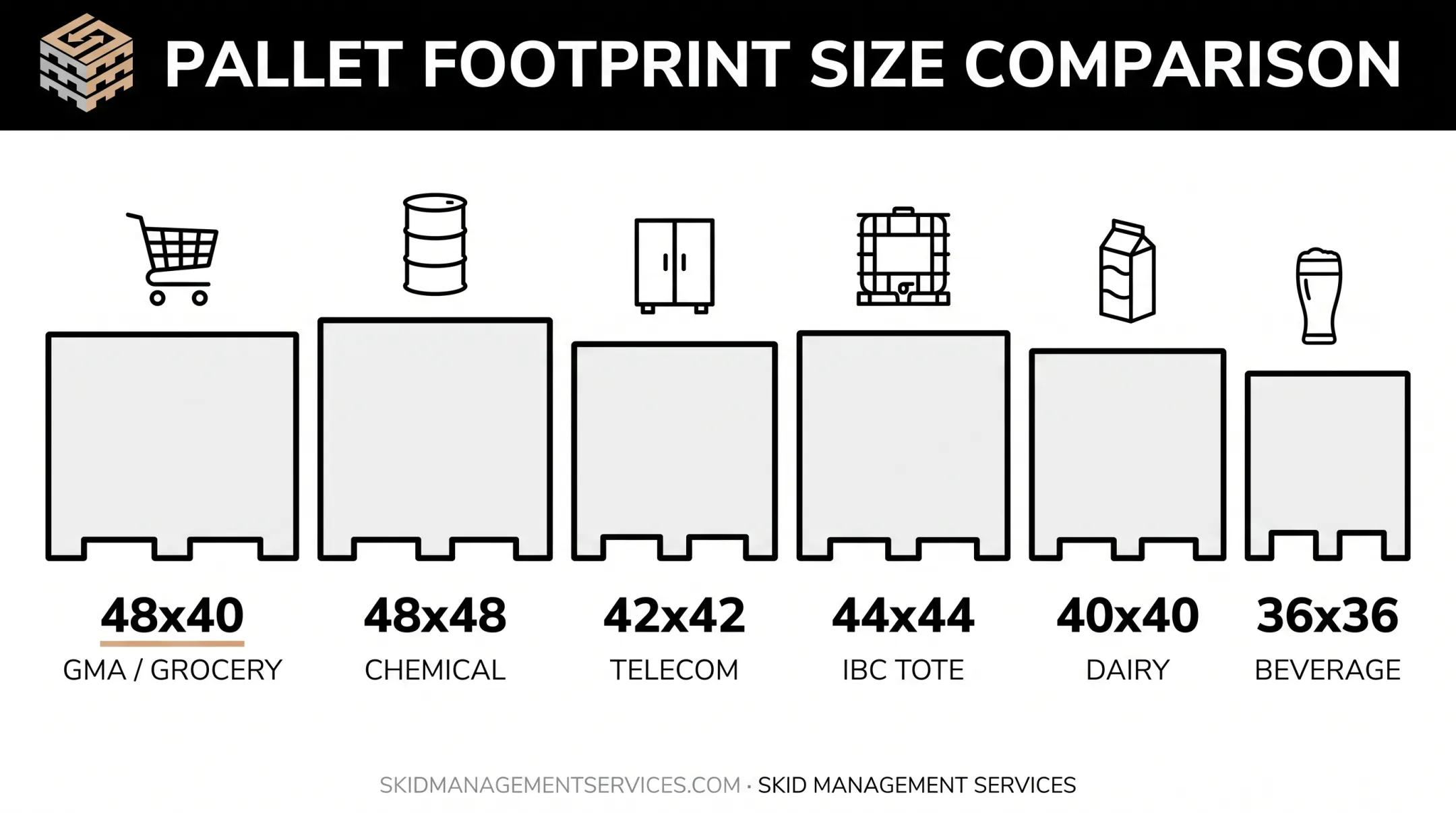

Standard Pallet Dimensions by Industry
Different products need different footprints. A drum of industrial chemical doesn't stack the same way a case of soda does, so industries gravitated toward sizes that fit their loads.
| Dimension | Common Name | Primary Industry Use |
|---|---|---|
| 48"x40" | GMA Pallet | Grocery, general retail, food/beverage; default for most CPG shipments |
| 48"x48" | Drum Pallet | Chemical and industrial drums; fits four 55-gallon drums |
| 42"x42" | Telecom/Chemical | Telecom cabinets and chemical containers needing a square footprint |
| 44"x44" | IBC Pallet | IBC tote operations matched to tote base dimensions |
| 40"x40" | Dairy | Dairy and specialty loads needing a compact, stable square base |
| 36"x36" | Beverage | Beer and craft-brewery distribution |
Skid Management Services supplies all of these footprints — plus quarter pallets (20"x24") and custom builds — so food, beverage, chemical, and industrial shippers can match pallet size to the load and keep throughput up and damage rates down.
Pallet Height, Weight, and Load Capacity
Footprint gets all the attention, but height is the spec that trips up freight calculations. A pallet's overall dimensions for shipping purposes include both the base and whatever's stacked on top.
Typical Height Range
Standard 48x40 pallets typically run 4.5 to 6.5 inches tall, excluding any load stacked on the deck. That range depends heavily on:
- Stringer versus block construction
- Deck board thickness
- Number of deck boards top and bottom
Total shipment height for freight classification always includes pallet height plus the stacked product, a detail that's easy to miss when eyeballing a quote.
Weight and Capacity Benchmarks
Empty standard pallets generally weigh 30 to 50 pounds, depending on lumber species and construction style.
Load capacity depends on more than a single number. The National Wooden Pallet and Container Association (now Woodpack Global) is explicit that safe working load depends on the specific use condition: support span, stacking height, and load distribution (NWPCA Uniform Standard for Wood Pallets, 2025).

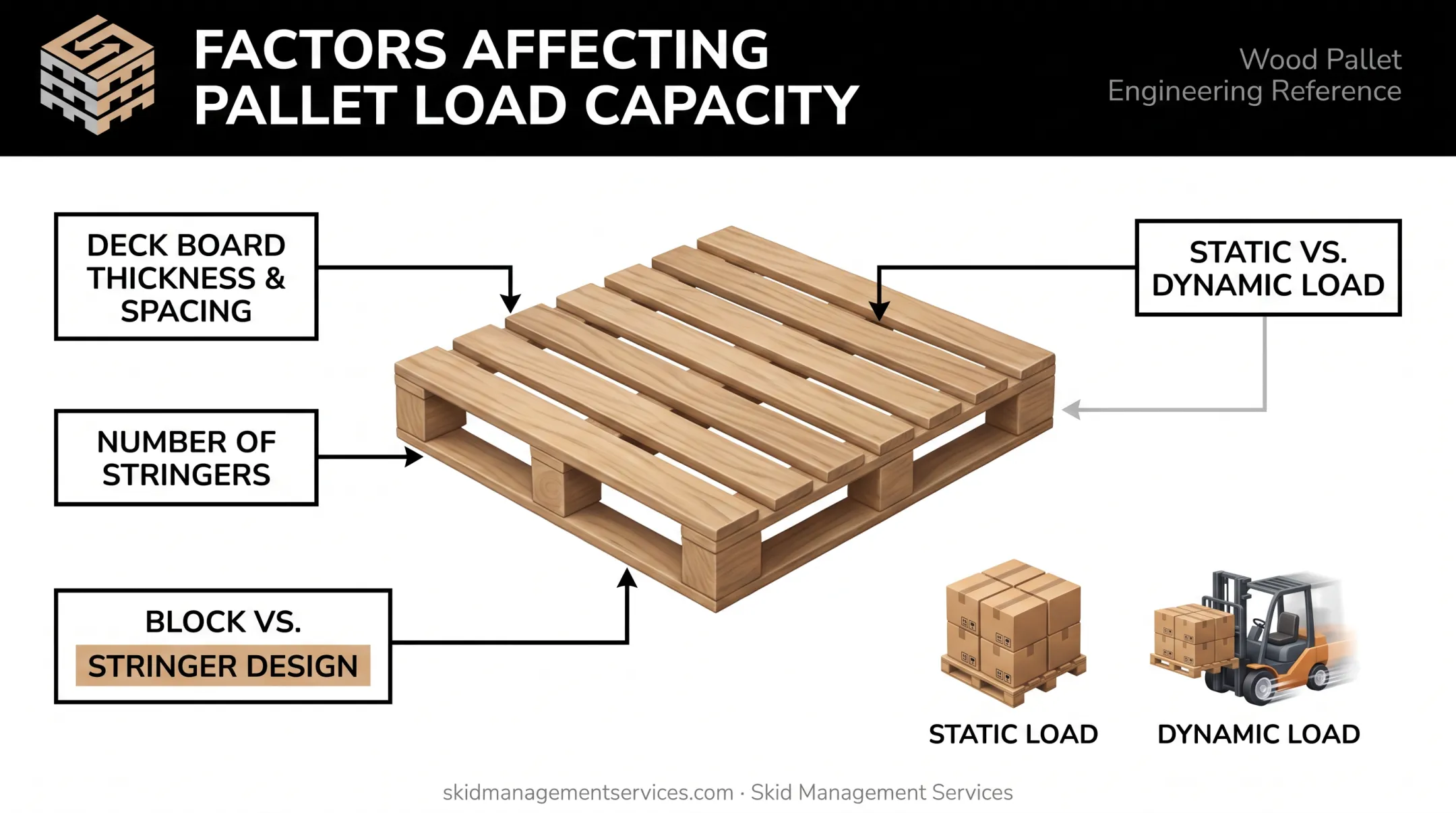

In practice, capacity varies with:
- Deck board thickness and spacing
- Number of stringers
- Block versus stringer design
- Whether the load is static (stacked in storage) or dynamic (moving on a forklift)
Rather than quote a single capacity figure that may not match your actual use case, ask your supplier for a rating tied to your specific support conditions and stack height.

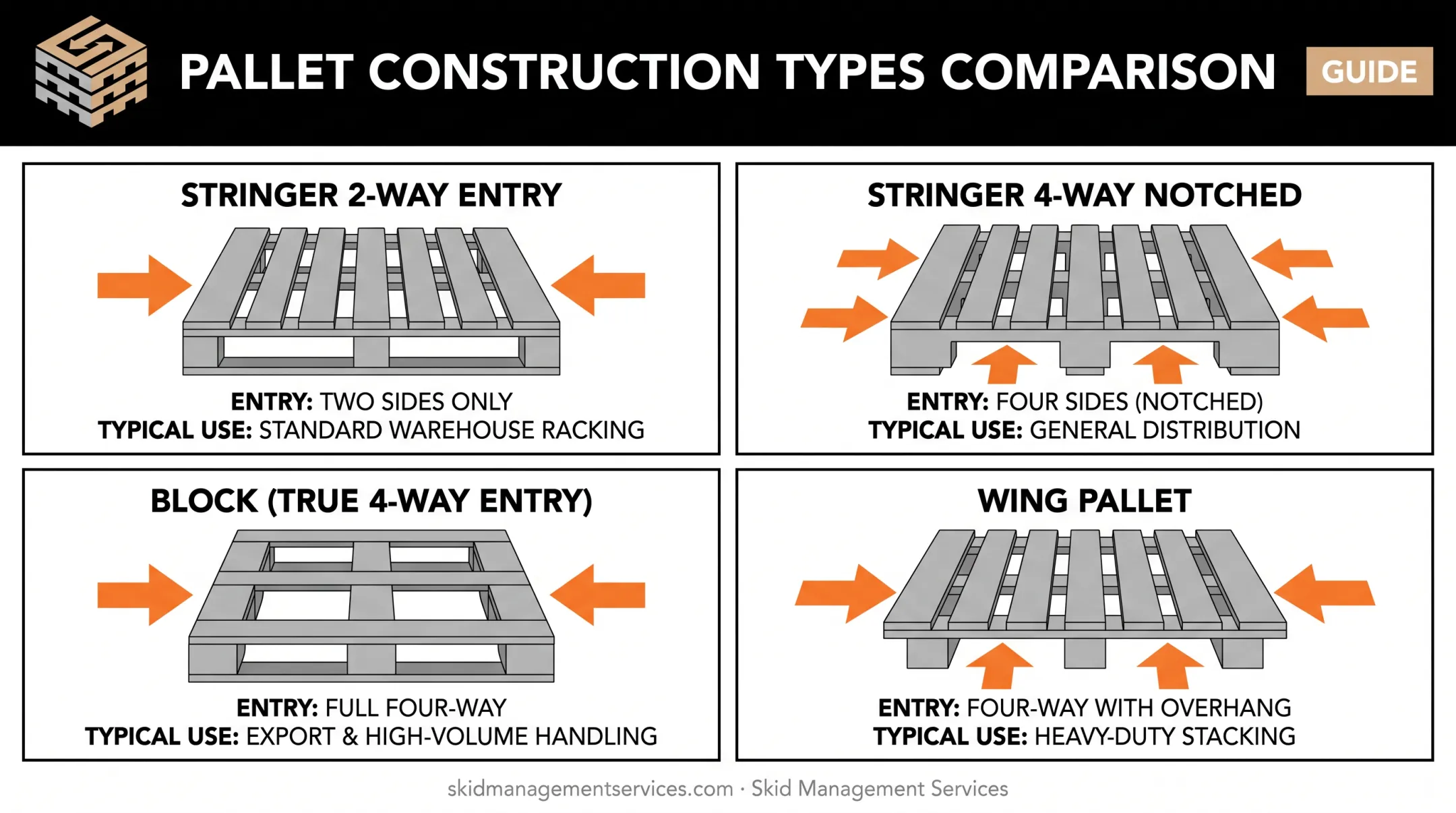

Pallet Construction Types That Affect Dimensions
Construction style affects more than sturdiness. It also decides which sides accept forklift entry—critical for warehouse layout and automation compatibility.
Stringer pallets use three parallel stringers running the length of the pallet, with the deck boards on top:
- 2-way entry: forklift access from the two open ends only
- 4-way entry (notched): partial side access through notches cut into the stringers
Block pallets use blocks at the corners and center instead of stringers:
- True 4-way entry: full forklift access from any side
- Sturdier under heavier or uneven loads; common in Euro-style construction
Specialized variations include:
- Wing pallets extend the deck boards beyond the stringers, useful for strapping and export applications
- Double-wing-stringer pallets combine wing extensions with notched stringers, offering enhanced load-bearing stability for heavier freight
Skid Management Services supplies all of these construction types, including double-wing-stringer builds rated for 4,000+ pounds of dynamic capacity in certain configurations — useful when a standard stringer pallet won't hold up to the load.
Choosing the Right Pallet Size for Your Business
Size selection should follow your product, not habit. Too many operations default to 48x40 simply because it's familiar, then wonder why product overhangs the deck or shifts in transit.
Start with your product profile:
- Weight and how it distributes across the footprint
- Fragility and whether overhang risks damage
- Case pack configuration and stacking pattern
Industry and customer requirements: Big-box retailers and certain distribution centers mandate specific pallet dimensions for compatibility with their receiving equipment. If your customer requires a specific size, that overrides general industry convention.
Domestic vs. international shipping: Export shipments typically need ISPM-15 heat treatment, and some international lanes call for Euro-pallet dimensions (1,200mm x 800mm) rather than a US footprint.
This is where a supplier that stocks the full range matters. Skid Management Services combines owned inventory with an expansive supplier network to source GMA 48x40, 48x48, 42x42, 44x44, 36x36, 40x40, Euro-equivalent, and fully custom dimensions — with consistent availability and competitive pricing rather than a one-size-fits-all push.
For a chemical manufacturer needing 48x48 drum pallets or a craft brewery needing 36x36, that flexibility avoids forcing every product onto an ill-fitting standard.
Common Mistakes When Specifying Pallet Dimensions
Even experienced shippers fall into a few predictable traps:
- Assuming "standard" is universal: a 48x40 pallet in grocery distribution isn't the industry standard for chemical drums or telecom equipment
- Ignoring height in freight calculations: quoting freight class based on footprint alone, then getting hit with dimensional weight surprises
- Using a domestic size for international shipments without checking compliance: shipping an untreated 48x40 pallet overseas without ISPM-15 heat treatment can get your freight rejected or destroyed at customs
Each of these is avoidable with a five-minute conversation with your pallet supplier before you finalize a shipping spec.
Conclusion
There's no single "standard" pallet. Dimensions vary meaningfully by industry, by region, and often by individual company practice. The 48x40 GMA pallet is the closest thing to a benchmark, but square footprints, dairy sizes, and beverage sizes all serve real purposes.
Matching pallet dimensions to your actual product and shipping requirements reduces freight costs and product damage more reliably than defaulting to whatever's on hand. Working with a national supplier like Skid Management Services, which stocks the full dimensional range and can build custom specs when nothing standard fits, makes that matching process far simpler.
Frequently Asked Questions
What is a standard pallet size LXWXH?
The most common North American standard is a 48"x40" footprint, with height typically ranging from 4.5" to 6.5" depending on stringer or block construction. There's no single fixed height across all manufacturers.
What is the height of a 40x48 pallet?
A 40x48 pallet is the same pallet as a 48x40, just measured lengthwise instead of widthwise. Height still falls in the 4.5" to 6.5" range, since orientation doesn't change the construction.
Are all pallets a standard size?
No. "Standard" varies by industry and region: chemical, telecom, dairy, and beverage sectors all use different square footprints. Many businesses also use custom-sized pallets built for specific products or equipment.
How much weight can a standard pallet hold?
Capacity depends on construction, support span, and load distribution rather than one fixed number. Ask your supplier for a rating tied to your specific stacking and support conditions, not a generic figure.
How much does a standard pallet weigh empty?
Empty standard pallets typically weigh 30 to 50 pounds, depending on lumber species, board thickness, and stringer or block construction.
Do I need special pallets for international shipping?
Yes. Export shipments require ISPM-15 heat treatment (a core temperature of 56°C for at least 30 minutes) plus proper IPPC marking. Some international lanes also use Euro-pallet dimensions instead of US standard sizes.
