Here's the problem: most shippers know one number for their pallets. Maybe two. But pallets actually carry three distinct load ratings, and each one tests a completely different stress condition.
This guide breaks down dynamic, static, and racked load capacity, what changes each number, and how to match the right pallet to your cargo before you load the first box.
Key Takeaways
- Three ratings apply: dynamic (moving), static (floor), and racked (on beams)—one number never covers all three
- Static capacity is always highest; racked capacity is always lowest
- Wood species, board thickness, and pallet condition can shift capacity by thousands of pounds
- Your real ceiling is the lower of the pallet’s rating and the rack beam’s rating
Understanding Pallet Load Capacity: The Three Ratings
"Load capacity" isn't a single figure you can memorize and apply everywhere. Virginia Tech's Center for Packaging and Unit Load Design confirms that pallet capacity depends heavily on the support condition and how weight is distributed across the payload. A pallet tested one way can perform very differently under another test condition.
That's why manufacturers publish three separate numbers: dynamic, static, and racked.
Dynamic Load Capacity
Dynamic capacity is the weight limit while a pallet is being moved, typically by forklift or pallet jack. This is often the most important number for warehouse operations, since most handling involves movement.
Manufacturer specs vary widely by construction. Uline's heat-treated GMA wood pallet lists a 2,500 lb fork capacity, while a USDA Forest Products Laboratory study modeled light-duty stringer pallets at roughly 1,000 lb and heavy-duty stringer designs closer to 1,500 lb. Design your handling procedures around this number first — it's the one your team encounters most often.
Static Load Capacity
Static capacity measures the weight limit while a pallet sits still on a flat floor, often supporting stacked loads. It's consistently the highest of the three ratings because the full deck bears weight evenly, without the bending stress that movement or beam-spanning introduces.
Uline's same GMA pallet lists a 7,528 lb floor capacity — roughly triple its handling rating. CHEP's block pallet goes further, citing up to 10,000 lb for stacks of up to five unit loads, though that figure depends entirely on uniform load distribution.
Racked Load Capacity
Racked capacity is the weight limit while a pallet spans two rack beams, unsupported in the middle. This is the lowest and most failure-prone rating because only the outer stringers or blocks carry the load, putting the deck under bending stress instead of full support.
CHEP reports 2,800 lb for its block pallet in normal racked operation with a uniformly distributed load. That's a steep drop from its static rating.

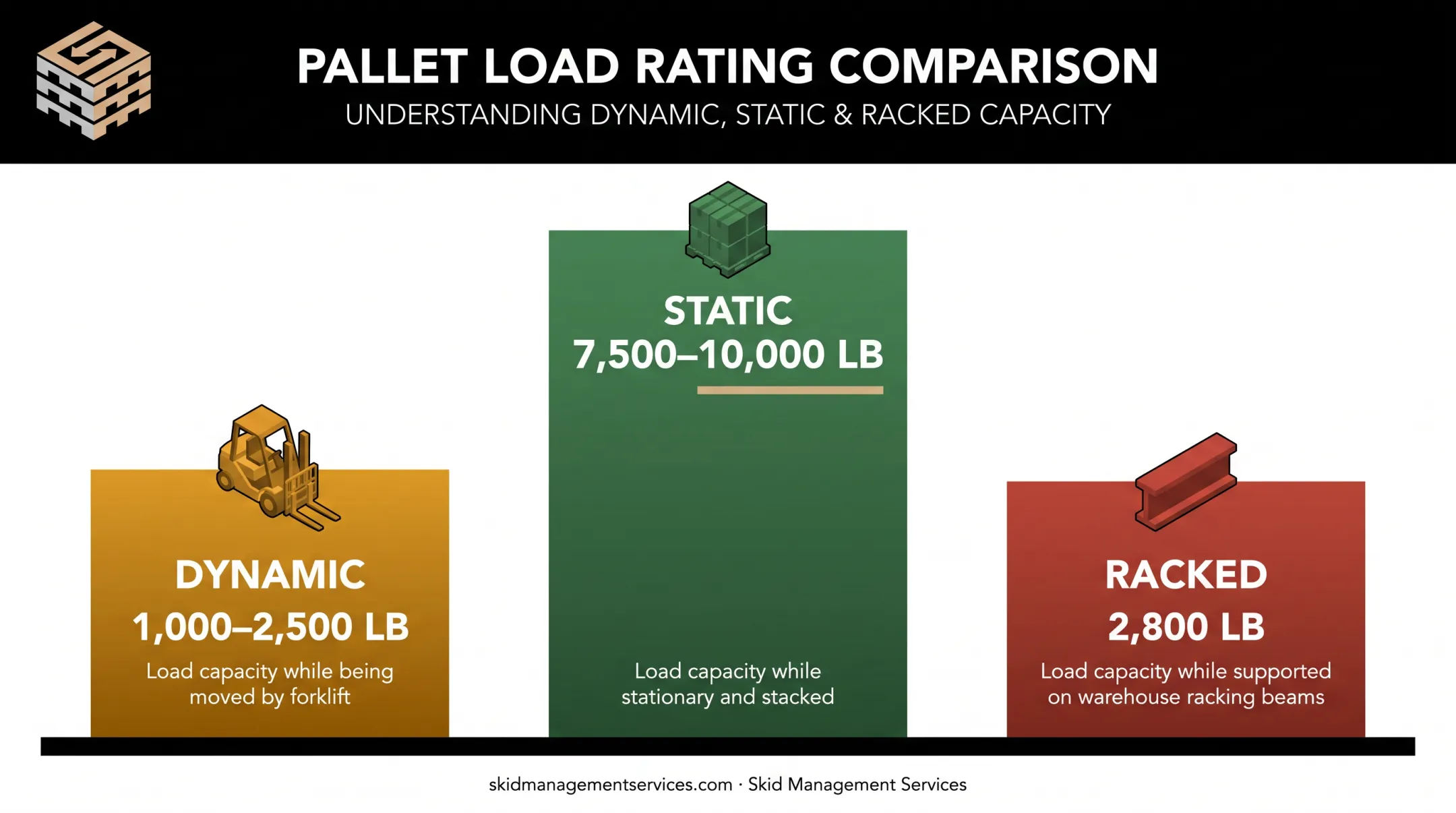

| Rating | What It Measures | Example Figures |
|---|---|---|
| Dynamic | Moved by forklift or jack | ~1,000–2,500 lb |
| Static | Sitting on a flat floor | ~7,500–10,000 lb |
| Racked | Spanning two rack beams | ~2,800 lb (block) |
Always check the manufacturer's spec sheet before you set handling, stacking, or racking limits. Generic rule-of-thumb numbers should never override a product-specific rating.
What Changes a Pallet's Load Capacity

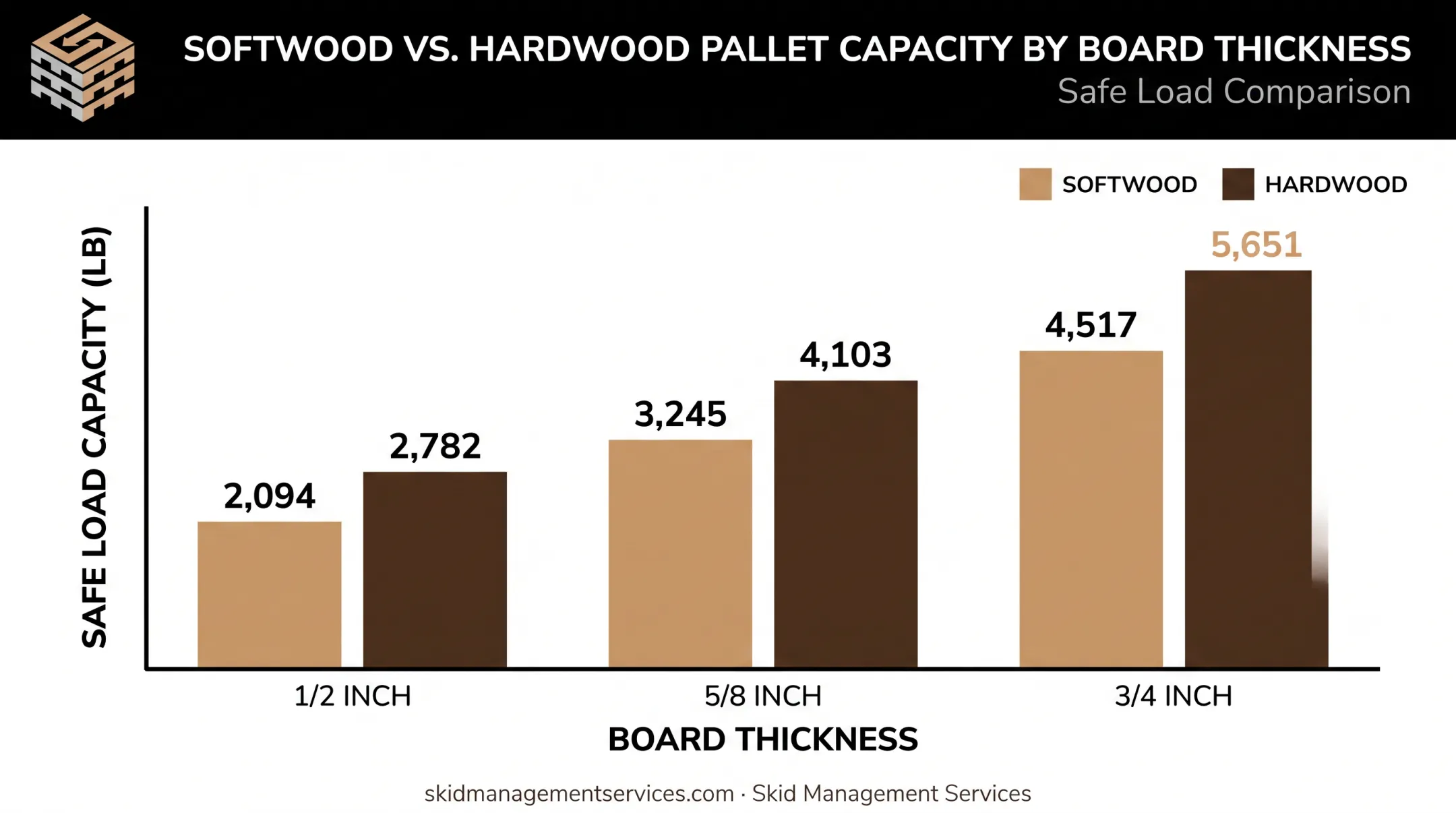

Several variables swing capacity by thousands of pounds, even on pallets that look nearly identical. Wood species matters more than most shippers realize. A USDA Forest Products Laboratory study tested 840 stringers and 2,520 deckboards across 14 hardwood species and found consistent strength differences by board width and species. Kamps Pallets' 2024 comparison found that at 3/4-inch board thickness, a new 48×40 pallet's safe average load jumped from 4,438 lb for softwood to 5,651 lb for hardwood — a meaningful gap on an otherwise identical build. Board thickness and count raise capacity next by improving weight distribution across the deck. Kamps' data shows the jump clearly across thickness tiers:
| Board Thickness | Softwood | Hardwood |
|---|---|---|
| 1/2 inch | 2,094 lb | 2,696 lb |
| 5/8 inch | 3,135 lb | 4,011 lb |
| 3/4 inch | 4,438 lb | 5,651 lb |
| Footprint size plays a role, but not a predictable one. A few extra inches don't automatically mean more capacity — construction quality matters just as much as dimensions. Treat footprint as one variable among several, not a standalone predictor. | ||
| Pallet condition and age matter enormously. A pallet with broken stringers, missing deckboards, or visible cracks should never be loaded near its rated capacity, regardless of what the spec sheet says. | ||
| Recycled grades make that condition gap concrete. At Skid Management Services, the practical tiers look like this: |
- Grade A — all seven deck boards intact, minimal repair history; performs close to new for most applications
- Grade B — one or two minor board repairs; full structural integrity for general warehouse use
- Utility Grade (#2) — budget option best reserved for internal-flow work, not capacity-critical shipments Stringer vs. block design changes both capacity and handling. Block pallets generally support more weight and allow true four-way forklift entry. Stringer pallets typically use two-way or four-way notched entry and suit standard U.S. warehouse flows when the load rating matches the job.
Load Capacity by Pallet Type and Material
So how much weight can a pallet actually hold? The honest answer: it depends on material and construction, but the range across the industry runs from roughly 1,000 lb to 30,000+ lb, depending on whether you're talking dynamic, static, or racked capacity.
Here's how that breaks down by type:
| Pallet Type | Dynamic | Static | Racked |
|---|---|---|---|
| Wood stringer (light-duty) | ~1,000 lb | Not standardized | Not standardized |
| Wood stringer (heavy-duty) | ~1,500 lb | Higher, varies by build | Lower, varies by build |
| Wood block (heavy-duty) | 2,500–3,000+ lb | Up to 10,000 lb | ~2,800 lb |
| Plastic, rackable | Up to 4,000 lb | Up to 30,000 lb | Up to 4,000 lb |
| Plastic, nestable | 2,000–2,800 lb | Up to 15,000 lb | Varies by model |
| Corrugated | 2,800+ lb | Support condition varies | Not rack-rated |
| Wire mesh | ~3,000 lb | ~4,000 lb stack | Not typically rack-rated |
A few practical notes:
- Single-use pallets like corrugated and presswood aren't rack-rated. Don't reuse them near capacity — they're built for one trip, not repeated cycles.
Custom builds rewrite those ranges. Skid Management Services supplies:
- 48×48 drum pallets at 2,500–3,000 lb dynamic for chemical and drum applications
- 44×44 IBC tote pallets at 3,000+ lb dynamic for 275- and 330-gallon totes
- Heavy-machinery pallets from 4,000 lb to 10,000+ lb dynamic
Supply continuity matters as much as the rating. Owned inventory plus a national supplier network means standard, heavy-duty, or fully custom pallets can ship without waiting on backorders.
Pallet Rack Capacity vs. Pallet Load Capacity
These are two separate ratings, and confusing them is one of the most common warehouse mistakes.
They measure different things:
- Pallet rack rating — what the pallet itself can handle while spanning beams
- Rack beam rating — what the steel structure can handle, independent of the pallet on it
They are not the same number. A strong pallet on a weak beam still fails. The rule that matters: always use the lower of the two ratings.
ANSI MH16.1-2023 governs how industrial steel storage racks are designed and tested. Capacity depends on frame design, material strength, and seismic zoning. RMI rack-specification guidance also notes that manufacturers need weight, dimensions, and load uniformity to rate the system accurately.
RMI's 2024 rack-safety guidance lists loading beyond rated capacity as a leading cause of rack damage, alongside impact and seismic forces. OSHA has documented inspection cases with damaged racks holding thousands of pounds of overloaded product, citing struck-by and crushing hazards.
Before storing a full pallet load, check both specs — not just one.
Safe Loading Practices and Equipment Limits
Even a perfectly rated pallet fails if it's loaded wrong.
Distribute weight evenly. Off-center loads cause failures well below rated capacity—often far under the number on the spec sheet. A pallet rated for 2,500 lb dynamic can still buckle under 1,800 lb if that weight sits unevenly on one corner.
Inspect before loading. Broken stringers, missing deckboards, or visible cracks drop effective capacity to near zero, no matter what the rating says. This takes 30 seconds and prevents most avoidable failures.
Match pallet grade to the job. A one-way light shipment doesn't need the same pallet as a repeated heavy-duty rack application. Overspecifying wastes money; underspecifying risks failure.

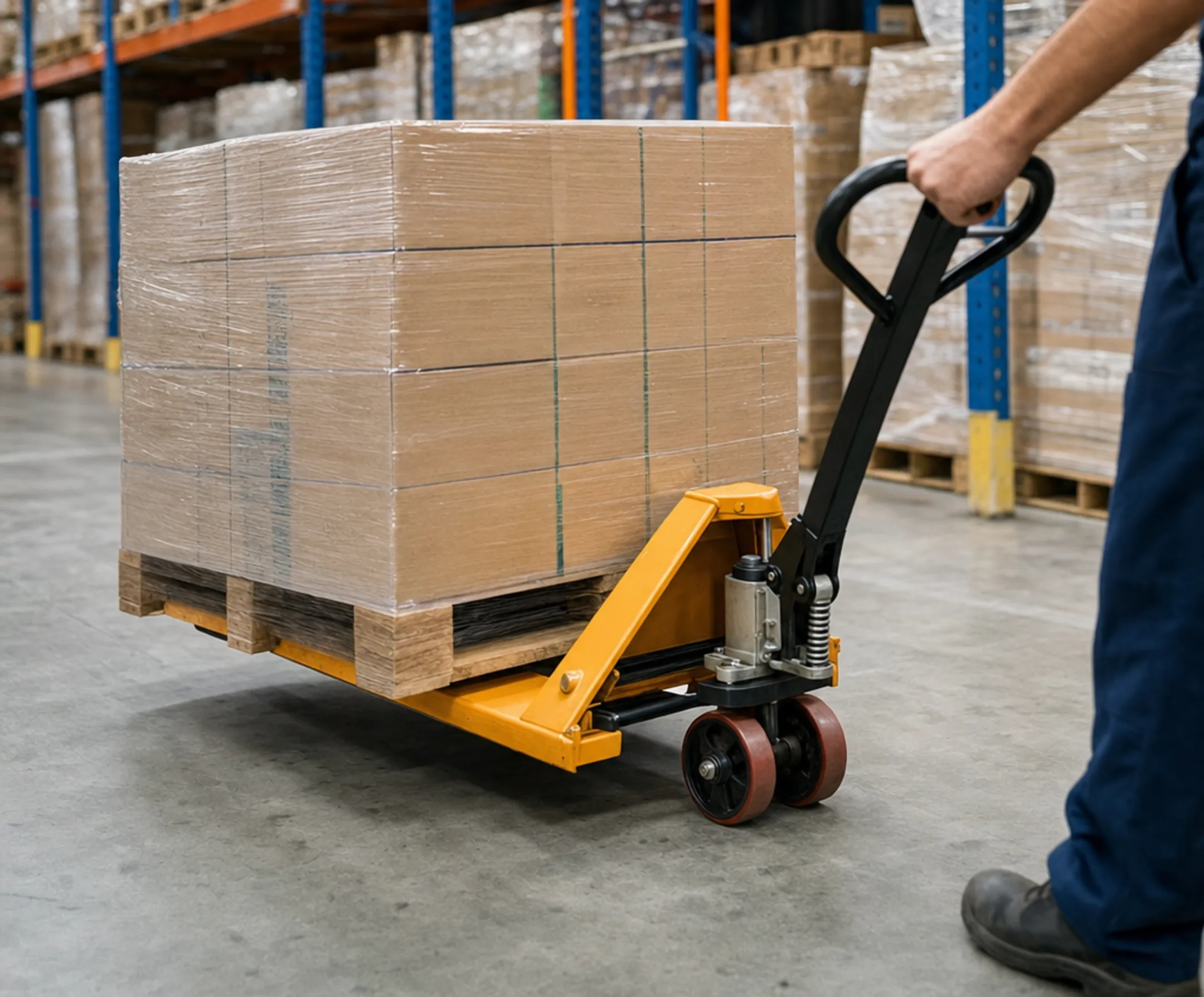

Equipment limits matter as much as the pallet rating. Can a pallet jack lift 2,000 pounds? Yes, comfortably. Standard manual pallet jacks are commonly rated between 2,000 and 5,500 lb. Examples on the market include:
- Crown PTH manual truck: approximately 5,070 lb
- Hyster PLPM2.5: approximately 5,512 lb
- Big Joe/Lift-Rite models: 4,500–5,500 lb range
Always confirm the exact rating on the equipment's data plate before assuming it matches these examples.
Frequently Asked Questions
How much weight can be loaded on a pallet?
Typical wood pallets range from 1,000 lb to 7,500+ lb depending on material and construction, with heavy-duty and custom builds going higher. The exact figure depends on whether you're measuring static, dynamic, or racked capacity.
Can a pallet jack lift 2,000 pounds?
Yes. Most standard manual pallet jacks are rated between 2,000 and 5,500 lb, so 2,000 lb sits comfortably within range for most models. Always confirm the exact capacity on the equipment's data plate.
What's the difference between dynamic and static pallet load?
Dynamic load applies while the pallet is being moved by forklift or pallet jack. Static load applies while it's sitting still, typically on a floor. Static ratings are always higher because there's no movement-related stress.
Why is racked load capacity lower than static or dynamic?
When a pallet spans rack beams, only the outer stringers or blocks support it, putting the deck under bending stress. That unsupported middle section is why racked capacity is consistently the weakest of the three ratings.
How does pallet condition affect load capacity?
Damaged or heavily repaired pallets carry far less than new, fully rated pallets. Grade A recycled pallets with minimal repairs perform close to new, while pallets with broken stringers or missing boards shouldn't be loaded near capacity at all.
Do heavier-duty or custom pallets cost more?
Cost varies by dimensions, lumber grade, and load rating, so custom builds are typically priced per specification. Sourcing through a supplier with a broad network, like Skid Management Services, helps keep pricing competitive even for heavy-duty or fully custom pallets.
