US companies increasingly run into Euro pallets even without exporting a single box overseas. A European supplier ships materials on them. A multinational parent company standardizes on them. Getting the sizing wrong causes wasted container space, racking mismatches, and shipment delays at customs.
This guide breaks down the exact measurements, weight capacities, variants, and how Euro pallets stack up against the standard US pallet you already know.
TL;DR
- EPAL/EUR-1 Euro pallet: 800 × 1200 mm (31.5" × 47.2"), 144 mm height
- Safe working load 1,500 kg (~3,300 lb); bottom-pallet stack max 5,500 kg (~12,100 lb) on a solid floor
- Differs from the US GMA 48" × 40" pallet — racks, trailers, and dock equipment often won’t match
- Look for EPAL/UIC 435-2 marks plus ISPM-15 heat-treatment stamps on certified import pallets
- Wrong size wastes container and truck cube and causes racking mismatches
What Euro Pallet Dimensions Represent in Logistics
The Euro pallet's 800mm x 1200mm (about 31.5" x 47.2") footprint isn't an arbitrary sizing choice. It's a formal standard set by European rail authorities and pallet certification bodies. The UIC 435-2 standard has governed EUR-1 pallet production and repair since 1961, covering everything from board thickness to nail patterns.

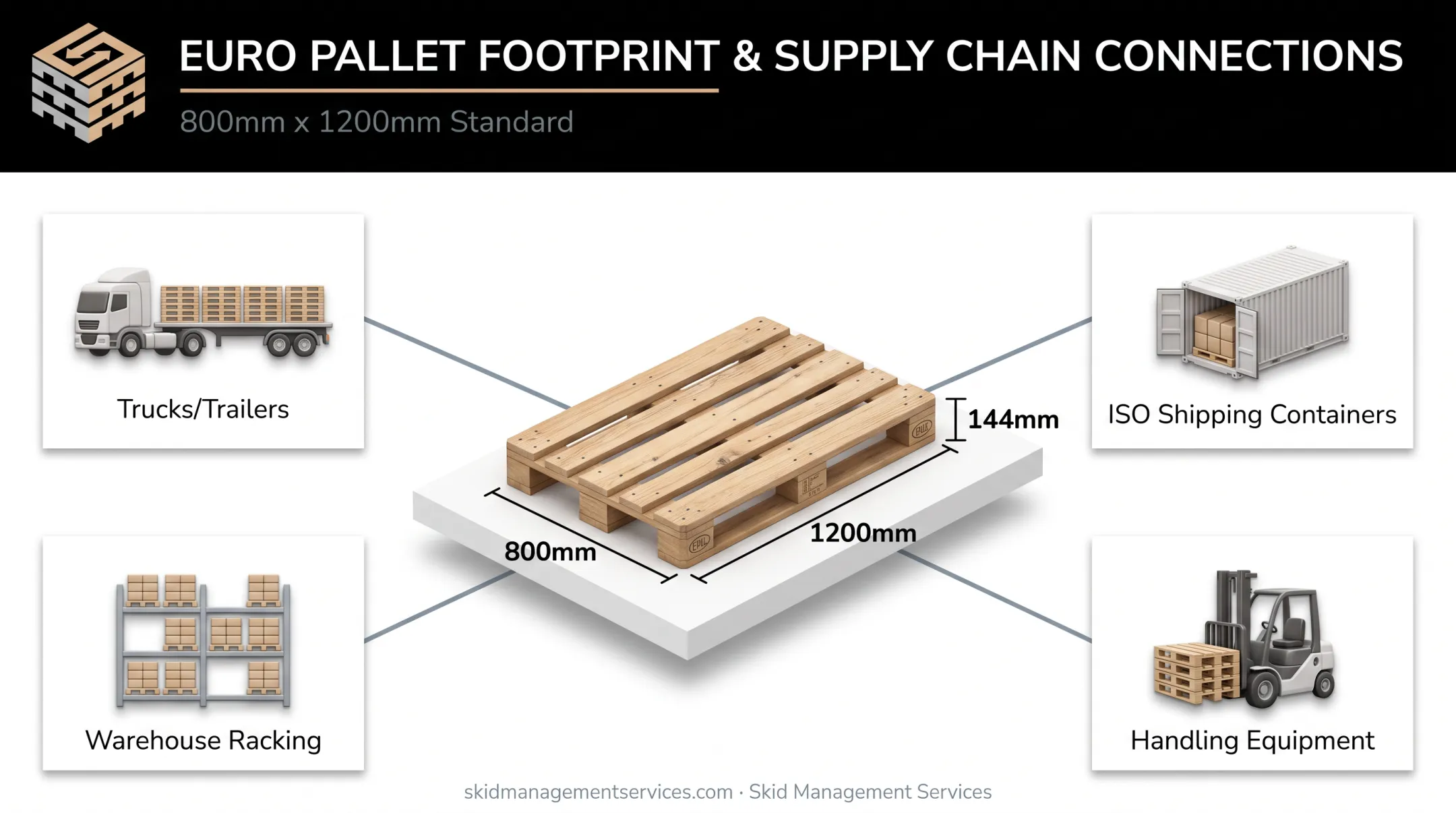

That footprint functions as a design constraint across the entire European logistics chain:
- Trucks and trailers built around European road-freight dimensions
- ISO shipping containers loaded for maximum floor coverage
- Warehouse racking sized to the 800mm x 1200mm module
- Handling equipment such as forklifts and conveyors calibrated to that footprint
The footprint is fixed. Height, weight, and load capacity still vary with manufacturer, wood moisture content, and pallet condition. A brand-new EPAL 1 and a reconditioned unit with the same stamp will not always weigh the same.
Range of Euro Pallet Dimensions and Capacities
Standard Footprint and Height
EPAL 1 certified pallets measure:
- Length: 1,200mm
- Width: 800mm
- Height: 144mm
- Usable area: approximately 0.96 square meters
These figures apply specifically to pallets bearing an authentic EPAL stamp. An unstamped 800x1200mm pallet may share the footprint but skip the manufacturing tolerances that make EPAL 1 predictable in racking and automated systems.
Weight and Load Capacity Range
According to EPAL's current product specification, an EPAL 1 pallet weighs approximately 25kg empty. Load ratings are:
- Safe working load: 1,500kg
- Bottom-pallet stacking maximum: 5,500kg when laden pallets are stacked on a solid, even surface
- Construction: 11 boards, 9 blocks, 78 nails
Some logistics sources cite a simplified 4,000kg static and 1,000kg rack figure. Treat those as rough planning numbers, not the primary EPAL benchmark. Always check the specific product sheet before quoting a capacity to a customer or auditor.
Safe Operating Margins
Rated capacities build in a margin below actual failure points. Wood is a natural material with variable strength, and a rated load accounts for moisture swings, repeated handling, and forklift impact over the pallet's working life.
Overload a pallet past its rating and you risk:
- Board cracking under uneven weight distribution
- Block failure at stress points
- Full collapse mid-transit, with product damage and liability exposure
Euro Pallet Variants and Related Sizes

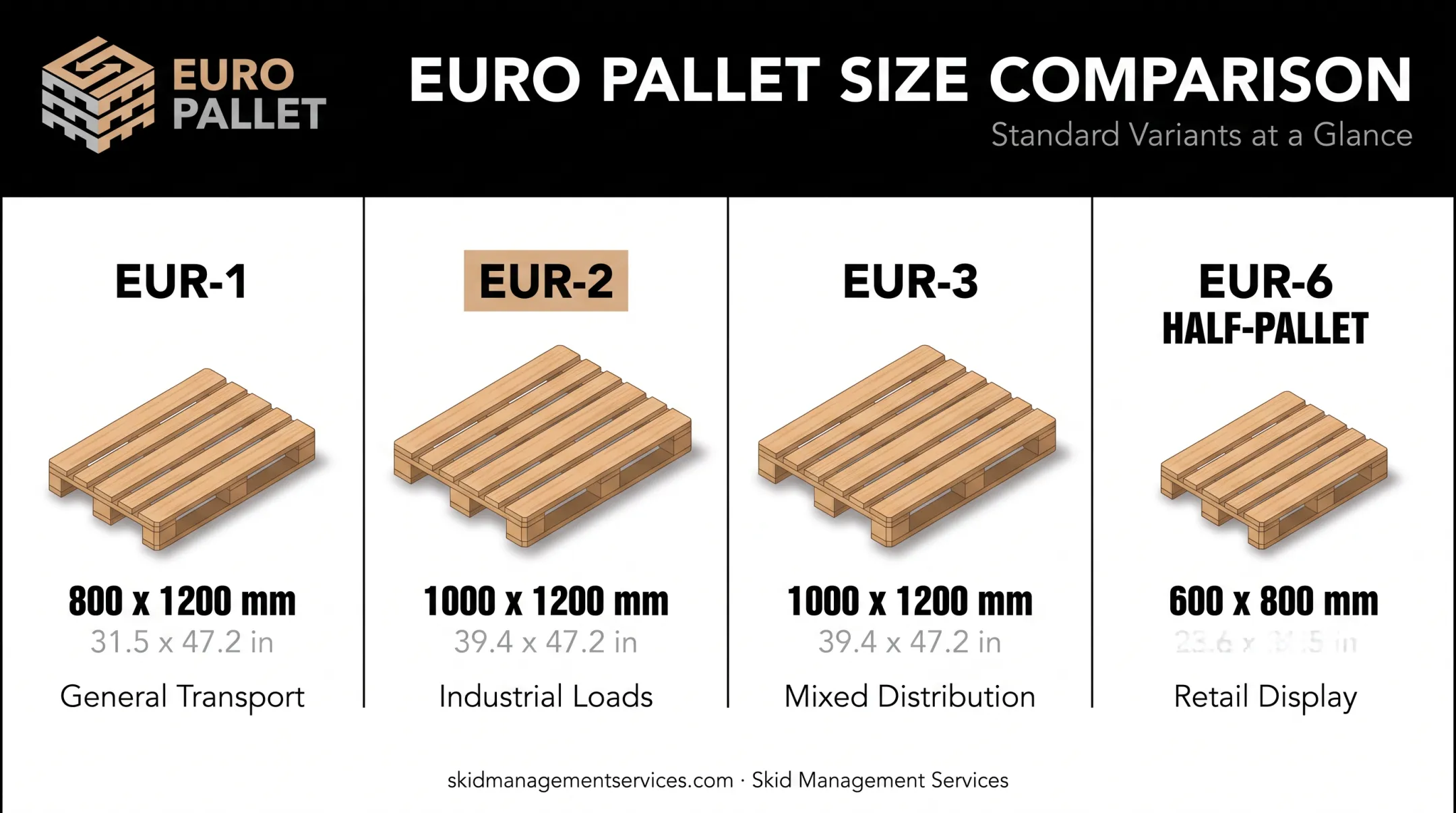

"Euro pallet" describes a family of standardized sizes, not one universal spec. Here's how the main variants break down:
| Variant | Dimensions (mm / in) | Typical Use |
|---|---|---|
| EUR-1 (EPAL 1) | 800 x 1,200 mm (31.5" x 47.2") | General transport, retail, food & beverage |
| EUR-2 (EPAL 2) | 1,000 x 1,200 mm (39.4" x 47.2") | Industrial and heavy machinery loads |
| EUR-3 (EPAL 3) | 1,000 x 1,200 mm (39.4" x 47.2") | Same footprint as EUR-2; lighter deck layout for mixed distribution |
| EUR-6 (Half-pallet) | 600 x 800 mm (23.6" x 31.5") | Retail display, light loads |
Beyond the core EUR family, CP (Chemical Industry) pallets use Euro-style construction for specialized loads. They are not interchangeable with EUR-1 despite the family resemblance:
- CP4 — 1,100 x 1,300 mm (43.3" x 51.2"); bagged goods
- CP8 / CP9 — 1,140 x 1,140 mm (44.9" x 44.9"); containers, casks, and flexible bulk bags
Euro Pallet vs. Standard US Pallet Dimensions
This is where most US businesses get tripped up.

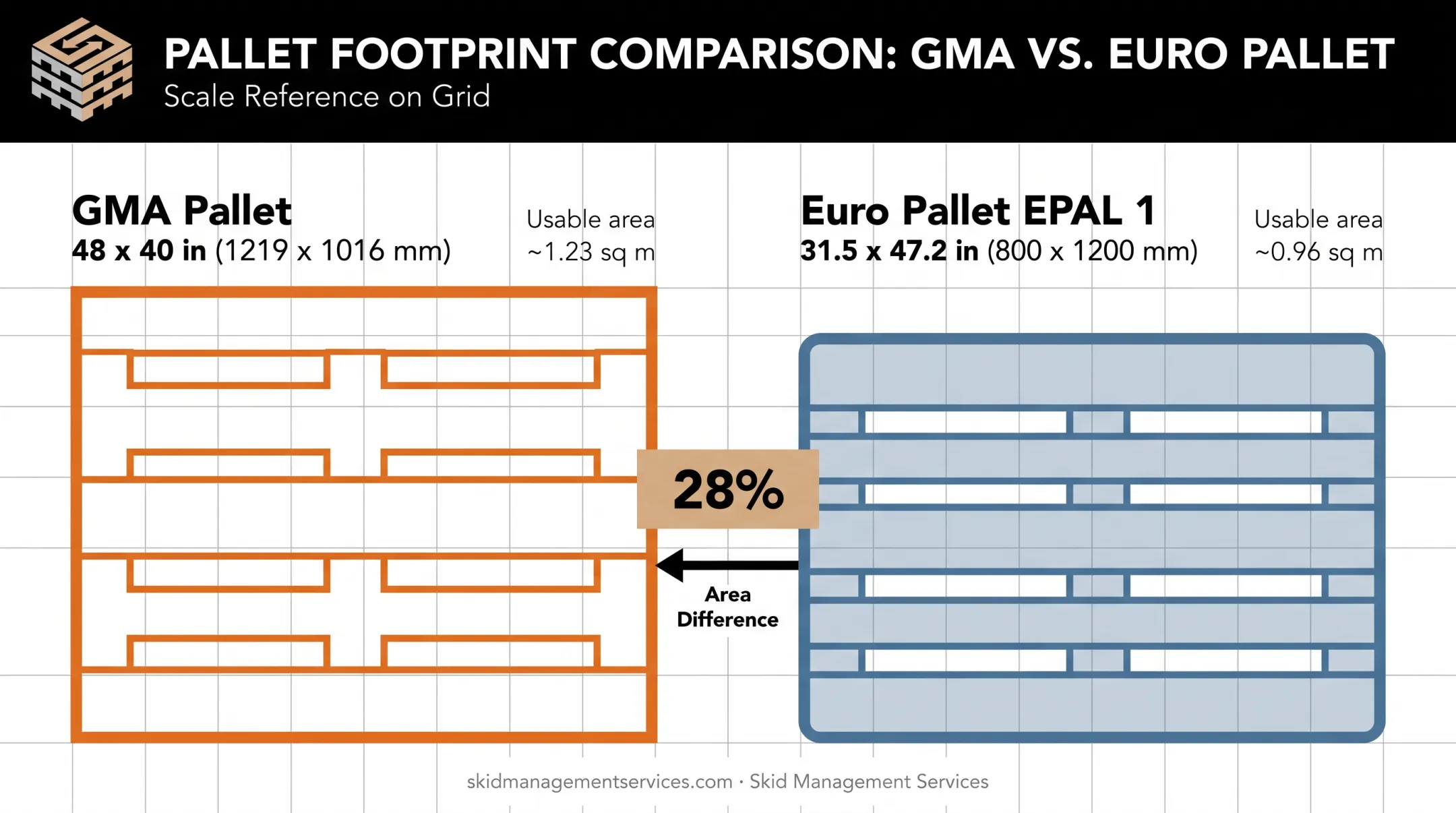

The standard US pallet, known as the GMA pallet, measures 48in x 40in (1,219mm x 1,016mm). Compare that against the Euro pallet's 31.5in x 47.2in (800mm x 1,200mm):
| Measure | GMA Pallet | Euro Pallet (EPAL 1) |
|---|---|---|
| Footprint | 48 x 40in | 31.5 x 47.2in |
| Usable area | ~1.23 sq m (~13.3 sq ft) | 0.96 sq m (~10.3 sq ft) |
| Origin standard | US industry norm | UIC/EPAL European standard |
That area difference matters. A GMA footprint runs roughly 28% larger than a Euro pallet's, which changes how efficiently either format fills a US trailer or a European trailer designed around the Euro module.
The racking problem is the bigger headache. Euro pallets don't align efficiently with racking beams spaced for GMA dimensions. Businesses receiving Euro pallets often end up with:
- Overhang or underhang on rack beams designed for 48x40 footprints
- Wasted vertical or horizontal rack space
- The need for dedicated storage zones just for Euro-dimension inventory
If your operation regularly handles both pallet types—whether a European supplier feeds a US warehouse or a multinational customer needs EPAL-spec outbound shipments—a supplier who can source and manage both formats saves a lot of headaches.
Skid Management Services supplies both GMA 48x40 pallets and Euro-size 800 x 1,200mm equivalents from its own inventory and supplier network, plus custom-dimensioned builds when neither standard fits cleanly.
How Euro Pallet Dimensions Are Specified, Measured, and Certified
Specification and Certification

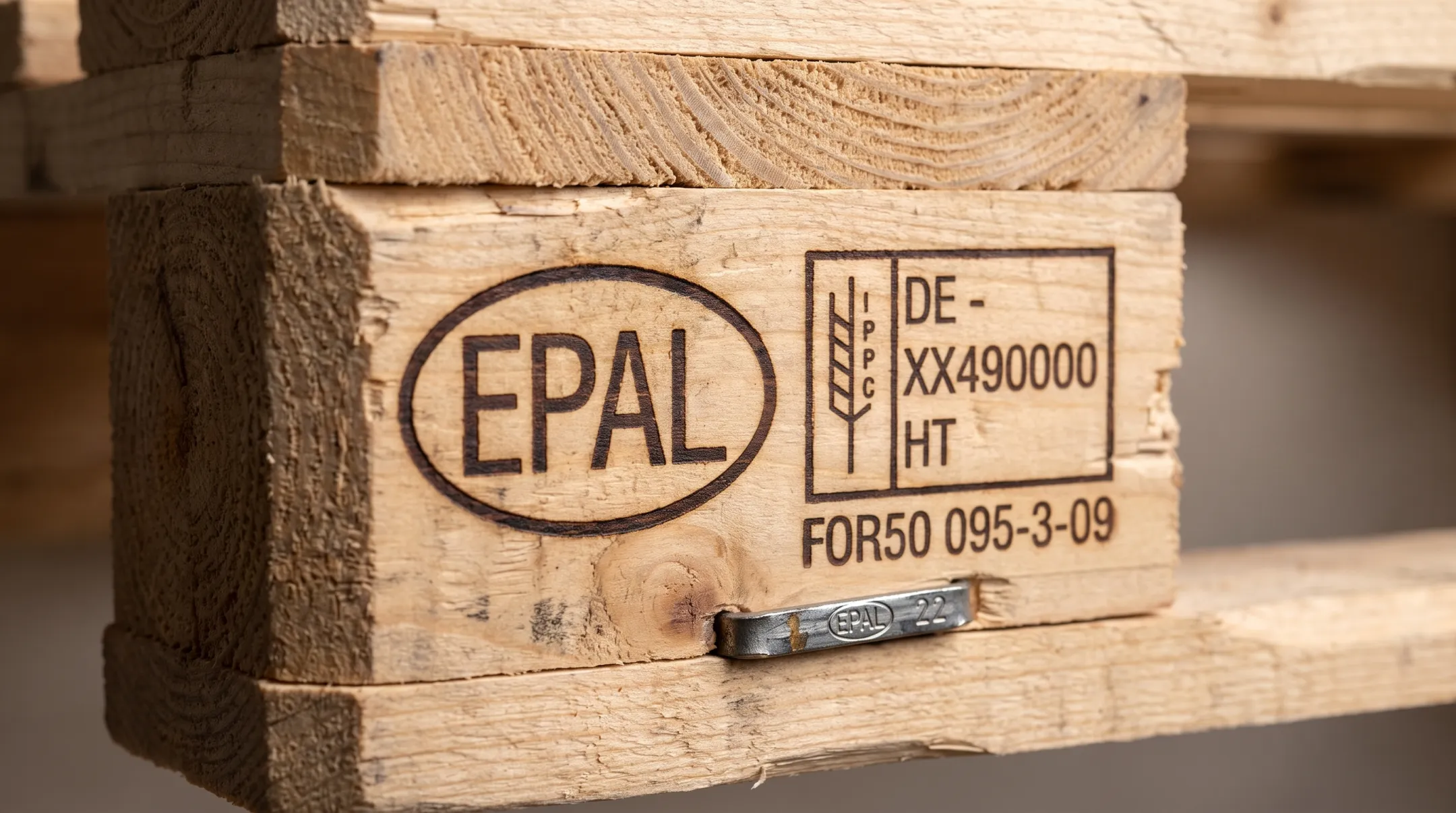

EPAL certification runs under the UIC 435-2 standard, which governs board thickness, block placement, and nail patterns down to exact tolerances. Authentic EPAL pallets carry:
- "EPAL" stamped in an oval on left and right corner blocks
- IPPC mark, country code, and treatment code on the middle block
- EPAL control staple and production date
- Repair marking nail when the pallet was fixed by an EPAL-licensed operator
An unstamped 800 x 1,200 mm pallet might match the footprint on paper but skip the tolerance controls that make EPAL 1 predictable across automated systems.
Measurement and Compliance Verification
Businesses receiving Euro pallets should verify three things on arrival:
- Footprint and height match the certified 800 x 1,200 x 144 mm spec
- EPAL stamp is present and legible on corner blocks
- ISPM-15 marking shows the IPPC logo, country code, and HT treatment code
Field variance happens. Unstamped or reconditioned Euro pallets sometimes deviate slightly from certified dimensions, especially after repair or repeated cycling through supply chains.
Implications of Using Incorrect or Non-Standard Euro Pallet Sizes
Getting pallet dimensions wrong creates problems that cascade through the supply chain:
- Wasted cargo space in containers and trailers loaded for a different footprint
- Racking instability when a mismatched pallet sits on beams designed for another dimension
- Handling and receiver refusals when docks, automation, or pool partners are built around the 1200 × 800 mm Euro footprint
Size is only part of the risk on international lanes. Wood packaging entering the United States must also meet ISPM-15 rules for pest-free, debarked, treated, and marked material, or it will not clear customs.
Non-compliant wood packaging doesn't just get flagged. US Customs and Border Protection can require destruction of violative material, which means delayed shipments and lost product on top of the compliance headache. Verifying ISPM-15 stamps before pallets ever leave the origin facility is far cheaper than dealing with a rejected shipment stateside.
Frequently Asked Questions
What is a EUR-1 pallet?
A EUR-1 pallet is the standard 800 mm × 1,200 mm EPAL-certified wooden pallet used widely across Europe for general transport, retail, and food and beverage distribution. It's the baseline reference point for the entire Euro pallet family.
How many Euro pallets fit in a 40ft container?
Industry estimates put 24–25 EPAL 1 (EUR-1) pallets in one floor tier of a standard 40 ft container, versus 20–21 industrial EPAL 2 pallets. Actual counts depend on cargo overhang, orientation, and weight distribution.
What is the difference between a standard pallet and a Euro pallet?
The US GMA pallet measures 48 in × 40 in, while the Euro pallet measures 31.5 in × 47.2 in. The GMA footprint is roughly 28% larger by area, and each is designed around its respective region's trucks, racking, and containers.
Can Euro pallets be used in the US?
Yes, but they may not fit standard US racking or trailers efficiently since footprints differ. Imported Euro pallets also need valid ISPM-15 heat-treatment stamps to clear US customs.
How much weight can a Euro pallet hold?
An EPAL 1 pallet carries a safe working load of 1,500 kg (about 3,300 lb), with a bottom-pallet stacking maximum of 5,500 kg (about 12,100 lb) when laden pallets sit on a solid, even surface.
Are all Euro pallets EPAL certified?
No. Many pallets share the 800 × 1,200 mm footprint without carrying an authentic EPAL stamp. Only stamped pallets guarantee the manufacturing tolerances and repair standards set by UIC 435-2.
